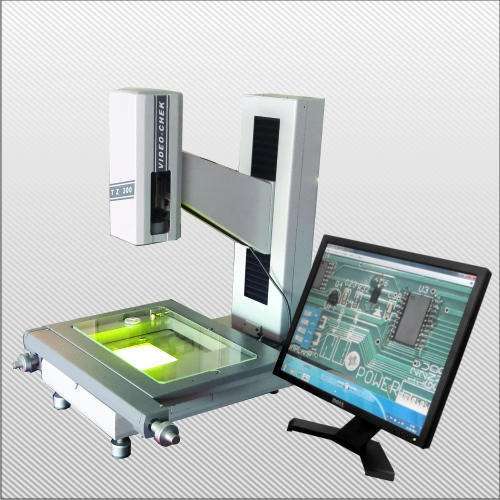

Vision Measuring Machine

Name: Vision Measuring Machine
Brand: Isomet Metrology Pvt Ltd
Price: 800000.0 INR
Availability: InStock

Price 800000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Vision Measuring Machine Specification

Axis Type
3-Axis

Resolution
0.1 m

Output
Digital, USB

Connector
USB, VGA

Connecting Type
Wired

Response Time
<1s

Housing Material
Aluminium Alloy

Application Media
Electronic Components, PCB, Mechanical Parts

Stability
2 m

Dimension (L*W*H)
500 x 400 x 500 mm

Sensitivity
High

Storage Temperature
0C - 50C

Mounting
Tabletop

Input
Touch Panel, Keyboard, Mouse

Operating Temperature
10C - 40C

Humidity %
<85% RH

Connectivity Type
USB, VGA

Language
English

Temperature Range
10C - 40C

Sensor Type
CCD Camera

Process Connection
PC Interface, USB

Load Capacity
10 kg

Equipment Type
Vision Measuring Machine

Measurement Range
0-200 mm (X Axis), 0-150 mm (Y Axis), 0-150 mm (Z Axis)

Measuring Units
mm, m

Model
TX-300

Capacity
Up to 10 kg

Frequency
50/60 Hz

Protection
Dust Cover

Color
Silver/White

Signal Type
Digital

Material
Aluminium Alloy, Glass, ABS plastic

Power Supply
AC 220V/50Hz

Power Consumption
40W

Accuracy
2 m

Display Type
LCD Monitor

Range
X, Y, Z axis: 200 x 150 x 150 mm

Imaging Lens
High-precision industrial lens

Video Output
Real-time display

Supported OS
Windows 7/8/10

Data Storage
Internal and external USB storage support

Light Source
LED ring light with adjustable brightness

Calibration
Automatic and Manual

Image Output Format
JPEG, BMP, PNG

Guide Rail
Linear guide rail for smooth movement

Focusing Method
Manual/Auto

Software
Measurement analysis software included

Vision Measuring Machine About

Experience unparalleled precision with the TX-300 Vision Measuring Machine-crafted for valorous industrial performance and supreme accuracy. Featuring a high-sensitivity CCD imaging lens, sublime LED ring light with adjustable brightness, and robust aluminium alloy body, it captures crisp images in JPEG, BMP, or PNG formats. Enjoy effortless calibration (automatic/manual), smooth linear guide rail movement, and real-time display on the LCD monitor. Compatibility with USB, VGA, and Windows 7/8/10 ensures flexible operation. Secure unprecedented accuracy at an unbeatable price-get it now for fresh, efficient measurements every time.

Sublime Precision, Versatile Application

The Vision Measuring Machine offers high-resolution imaging, automatic/manual calibration, and a robust structure-ensuring sustained reliability in electronic component inspection, PCB analysis, and mechanical part measurement. Its linear guide rail provides smooth, accurate movement across X, Y, and Z axes, while the LED ring light enhances image clarity. Unmatched for its features, the TX-300 delivers competitive advantages such as high accuracy, digital output, and rapid response, making it ideal for quality-driven industrial applications.

Main Domestic Market & Professional Processes

The Vision Measuring Machine serves major domestic markets with swift quotation, seamless drop-off, and smooth handover processes for customers. Payment terms cater to flexibility, supporting advance payments or agreements upon delivery. Certification compliance guarantees product reliability and safety. Comprehensive aftersales assistance and straightforward installation ensure satisfaction throughout the purchasing journey, reinforcing the reliability of manufacturer, supplier, trader, and wholesaler networks.

FAQ's of Vision Measuring Machine:

Q: How does the Vision Measuring Machine ensure high measurement accuracy?

A: The TX-300 Vision Measuring Machine uses a high-precision CCD imaging lens, advanced calibration (both automatic and manual), and smooth linear guide rails, ensuring measurement accuracy up to 2 micrometers across all axes.

Q: What types of files can be generated with this machine?

A: Images captured and processed by the Vision Measuring Machine can be saved in JPEG, BMP, and PNG formats for versatile documentation and analysis.

Q: When is it best to use the automatic calibration feature?

A: Automatic calibration is ideal when frequent or rapid changes in measurement settings are required, ensuring accuracy and reducing the need for manual adjustments during intensive use.

Q: Where can the Vision Measuring Machine be applied?

A: The machine is suitable for electronic components, PCB inspection, and mechanical parts measurement, serving industries that require detailed and reproducible measurements.

Q: What is the process for connecting and storing measurement data?

A: The device allows seamless data output via USB and VGA connections, supporting internal and external USB storage for secure saving and transfer of measurement data.

Q: What benefits does the adjustable brightness LED ring light provide?

A: The adjustable LED ring light offers enhanced image clarity for different materials and surface textures, significantly improving measurement accuracy and inspection outcomes.
