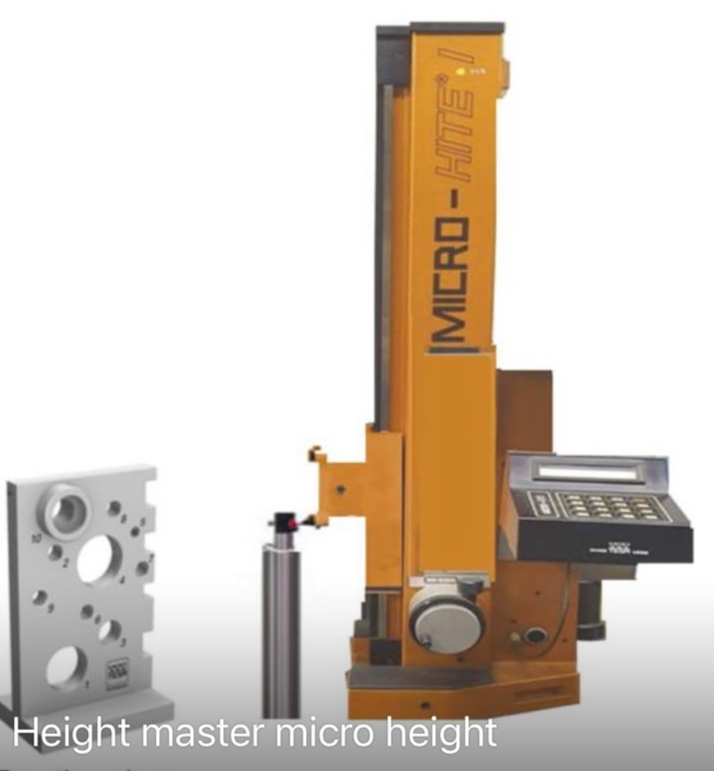

Digital Micro Height Master

Name: Digital Micro Height Master
Brand: Isomet Metrology Pvt Ltd
Price: 175000.0 INR
Availability: InStock

Price 175000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Micro Height Master Specification

Response Time
<1 second

Measuring Units
mm / inch switchable

Storage Temperature
-20C to 60C

Resolution
0.001 mm

Axis Type
Single Axis

Operating Temperature
10C to 40C

Housing Material
Anodized Aluminum

Language
English

Frequency
50/60 Hz

Signal Type
Digital

Sensitivity
0.001 mm

Connectivity Type
Wired, RS-232 interface

Color
Yellow-Black

Protection
Dust Protected

Input
Keypad

Model
MICRO-HITE I

Load Capacity
5 kg

Connecting Type
Cable

Temperature Range
10C to 40C

Diameter
Up to 50 mm

Humidity %
Max 80% (non-condensing)

Measurement Range
0 - 600 mm

Mounting
Bench Mount

Sensor Type
Linear Encoder

Dimension (L*W*H)
420 mm x 200 mm x 850 mm

Output
Digital RS-232

Length
600 mm (max measuring length)

Stability
0.001 mm

Equipment Type
Digital Micro Height Master

Connector
RS-232

Application Media
Metal and Non-metal parts

Material
Alloy Steel & Aluminum

Power Supply
220-240V AC

Power Consumption
10W (typical)

Accuracy
0.001 mm

Display Type
Digital LCD

Range
0 - 600 mm

Display Orientation
Adjustable panel

Battery Backup
Optional (available with UPS)

Weight
Approximately 30 kg

Reference Point
User settable

Software Compatibility
Compatible with standard SPC software

Beep Function
Yes, programmable

Drive Type
Manual/mechanical

Repeatability
0.001 mm

Keypad Type
Membrane Touchable Keypad

Guiding System
High precision linear

Calibration Standard
Supplied with manufacturers certificate

Data Storage
Internal memory (up to 100 measurements)

Base Material
Hardened Steel

Digital Micro Height Master About

Jump on this rare opportunity to own the exclusive MICRO-HITE I Digital Micro Height Master-a stellar, precision instrument designed for monumental accuracy in inspection and quality control. Crafted from the finest alloy steel and anodized aluminum, it features a high-precision linear guiding system, adjustable digital LCD display, and intuitive membrane keypad. With 0.001 mm repeatability, programmable beep function, and seamless SPC software compatibility, this marvel is dust protected and boasts robust internal memory. Quick, reliable, and dust-protected, it guarantees the finest measurements every time.

Where the Digital Micro Height Master Excels

The Digital Micro Height Master is ideal for use in leading manufacturing units, precision engineering labs, tool rooms, and quality control sites. Its advanced design suits both metal and non-metal parts on bench-mounted surfaces. Optimal for application on precision-ground tables and granite surfaces, it ensures high-accuracy readings. Common application media include automotive components, aerospace assemblies, industrial fabrication, and research laboratories, delivering consistently stellar performance.

Export Markets, List Price & Dispatch Information

The Digital Micro Height Master is in high demand across key export markets including Europe, Asia, North America, and the Middle East. List price is available upon inquiry, with a focus on quick dispatch and secure packing. FOB Port arrangements are streamlined for global clients, and meticulous Packing & Dispatch is ensured to prevent transit damage. Every unit is supplied with manufacturer's certificate, making it a stellar choice for international traders and wholesalers.

FAQ's of Digital Micro Height Master:

Q: How is the Digital Micro Height Master calibrated for accuracy?

A: The Digital Micro Height Master is supplied with a manufacturer's certificate, ensuring traceable calibration to the highest standards for reliable, precise measurements.

Q: What surfaces and parts can this equipment be used on?

A: It is designed for both metal and non-metal parts, best suited for precision-ground tables or granite surfaces in tool rooms, labs, or factories.

Q: Where can the Digital Micro Height Master be installed?

A: This equipment is intended for bench-mounted installation, ideal for inspection rooms, quality control labs, and industrial workshops requiring fine measurement.

Q: What is the process for data storage and output?

A: You can store up to 100 measurements in internal memory and transfer data via the digital RS-232 output for seamless integration with SPC software.

Q: What benefits does the programmable beep function and keypad offer users?

A: The programmable beep and tactile membrane keypad provide user-friendly operation, reducing errors and ensuring process efficiency during measurements.
